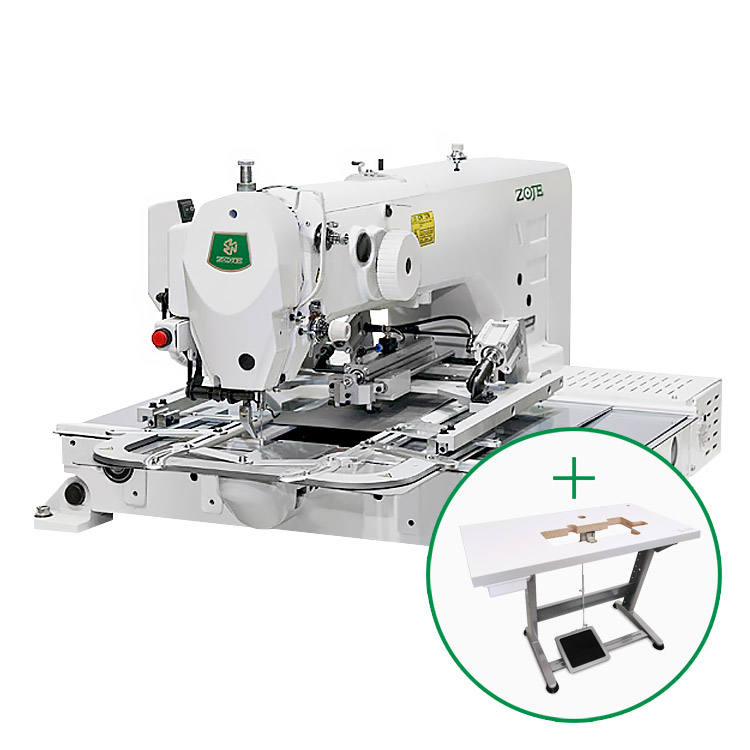

ZOJE ZJ5770A-3020HG1 SET
NI ZALOGE ZOJE ZJ5770A-3020HG1 SET

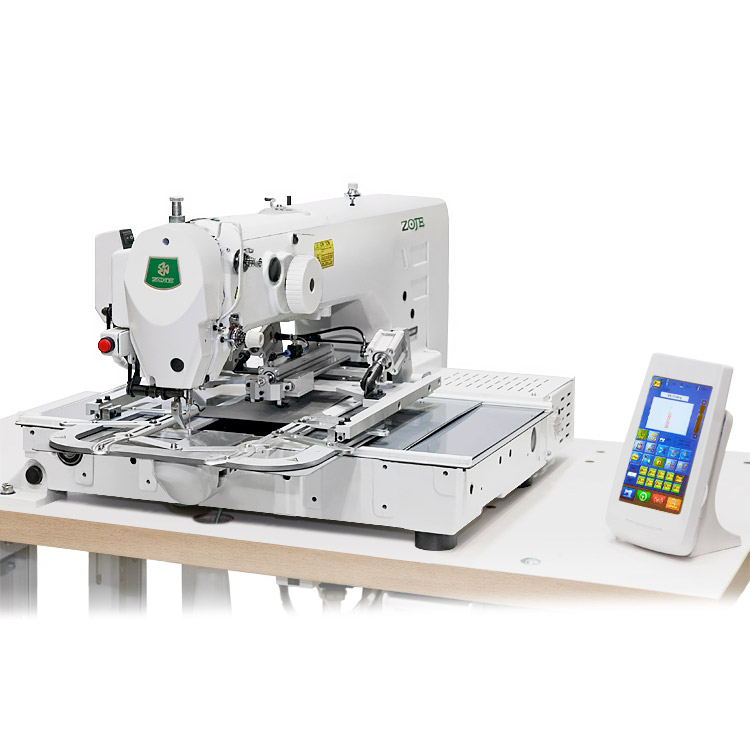

Programmable pattern sewing machine. Enables patterns programming on the touch control panel and storing them in memory - up to 999 patterns. Max. stitches amount in pattern 50.000. The editing of already existing as well as already programmed patterns. Control panel with USB port allows importing designs from other devices (supports .dxf files).
Machine in version HG with additional presser clamp for sewing on emblems, labels, Velcro, labels etc.
Version for medium and heavy materials. Serial equipped with automatic thread trimmer, wiper, safety switch. Machine with built-in fast and precise stepping motors working in x and y axis and Direct Drive system with servo motor mounted in machine head. Sewing area 300x200 mm, stitch length 0,1 - 12,7 mm, clamp (frame) lifting up to 30 mm, max sewing speed 2.800 s.p.m. Compressed air necessary 5 bar.
Available in HF and HG:
HF: Heavy material - Double cylinder moving together driving presser foot (Integrated type)
HG: Heavy material - Double cylinder moving separate & flexible driving press foot
For this machine we recommend SCHMETZ needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
Tih, varčen in zanesljiv

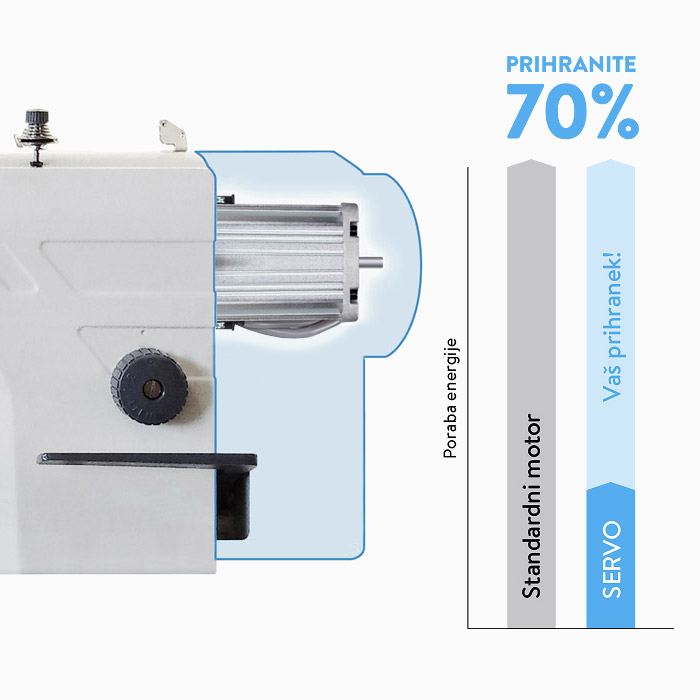

Zahvaljujoč integraciji vseh najpomembnejših elementov v glavo stroja, industrijski šivalni stroj deluje mirno in brez odvečnih vibracij. AC Servo motor je enofazni motor (220V), ki privarčuje do 70% električne energije v primerjavi z standarnimi električnimi motorji ali motorji s sklopko.

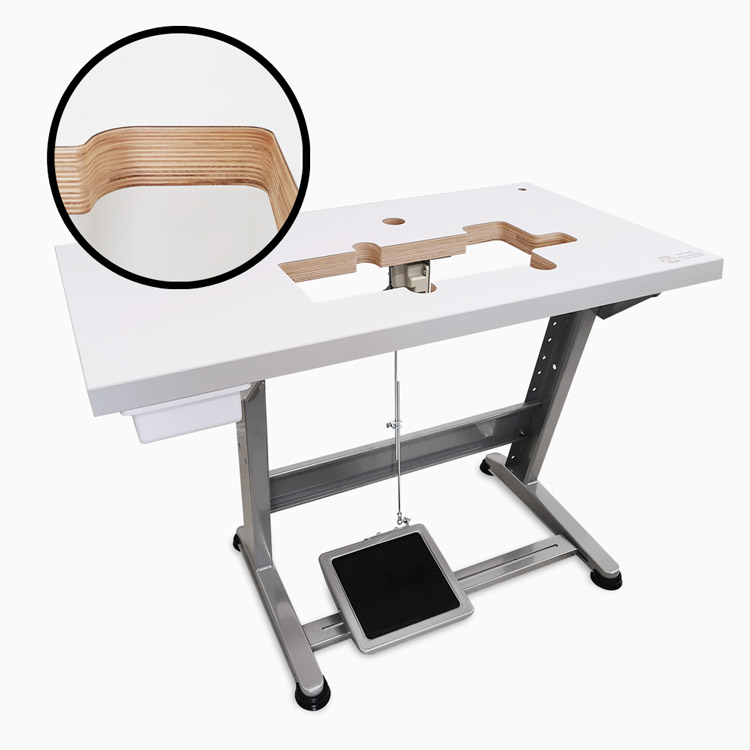

PREMIUM stojalo in delovna površina
Stojalo Premium silver - jekleno, stabilno in univerzalno stojalo z nastavitvijo višine. Prašno barvano v srebrni barvi RAL 9006. Narejeno v Nemčiji.
Miza TSM Premium - specialna miza za industrijske šivalne stroje izdelana iz brezovega lesa, odporna proti vlagi (30 vezanih plošč), ki uspešno zaduši vibracije delovnega stroja. PREMIUM miza za šivalne stroje je prevlečena s posebnim laminatom, ki je odporen proti udarcem, odrgninam in trščenju. Stranice mize so zaščitene z ABS trakovi, ki ščitijo pred udarci. Ne vsebuje škodljivih snovi.
Šiv.
Šiv.

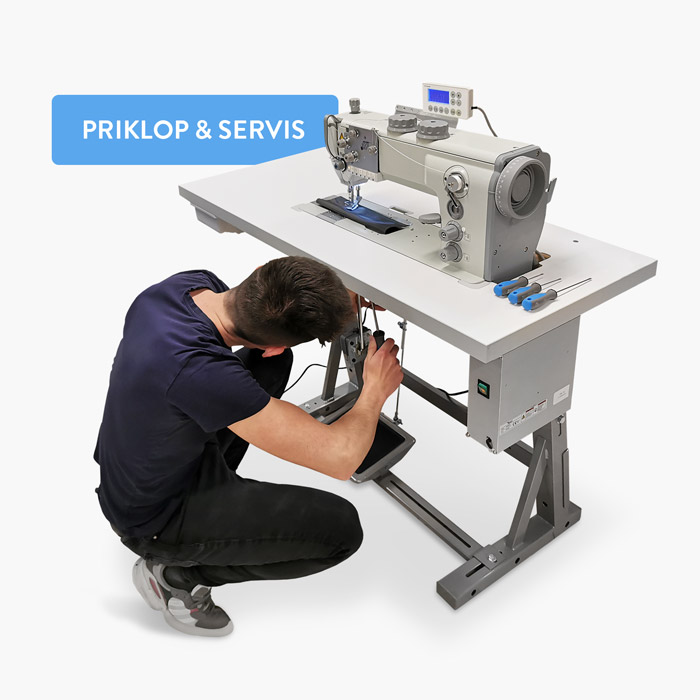

Priklop in servis
Vse industrijske šivalne stroje sestavimo, pregledamo in testiramo. Le tako lahko zagotovimo njihovo brezhibno delovanje.
Glavne funkcije:
| Kit: | set |
| Sewing area: | 300x200 mm |
| Max. sewing speed: | 2800 s.p.m. |
| Needle system: | 135X17 |
| Kit: | complete set |
